Model Name: HR-FFSRSBF / Maker: 이피엠스

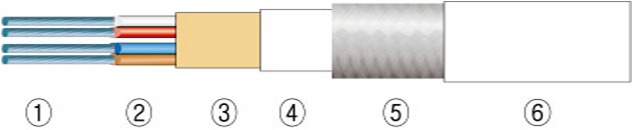

- 1 - Stranded tinned plated copper core (class 5 according to IEC 60228)
- 2 - FEP insulation
- 3 - Polyester separating tape
- 4 - Silicone rubber
- 5 - Tinned plated copper braid
- 6 - FEP outer sheath
◇ Construction details:
| Nominal cross-section (㎟) |
Nominal stranding (CuSn) |
Nominal diameter of insullation (mm) |
Overall diameter of cable (mm) |
Maximum linear resistance at 20℃ (ohm/m) |
| 2 P 0.50㎟ |
0.18 X 20 |
1.3 ± 0.10 |
7.2 ± 0.50 |
40.1 |
| 3 P 0.50㎟ |
0.18 X 20 |
1.3 ± 0.10 |
7.5 ± 0.50 |
40.1 |
◇ Conductors are twisted in pair and the pairs are twisted together
colour coding: pair 1: white, red: pair 2: blue, brown: pair 3: black, yellow: pair 4: green, grey
◇ DIN VDE 47100에 따른 색상 기준
core no.
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
| White |
Brown |
Green |
Yellow |
Grey |
Pink |
Blue |
Red |
Black |
Violet |
◇ Technical data:
Thermal: Nominal working temperature: -60℃ to + 180℃
Electrical: Nominal working voltage: 300 V
Test voltage: 2500 V
Mechanical: Cut resistance: Good
Abrasion resistance: Excellent
Chemical: Humidity resistance: Excellent
Chemical agressions resistance: Excellent
Hydrocarbon resistance: Excellent
|
|
|
|
|
